The RUG9 PLC is currently
the most powerful and
expandable PLC in a long
line of RUGID PLCs designed
for remote data acquisition
and control applications. It
incorporates advanced
hardware and software
techniques so you can
implement your application in
minimal time. Numerous hardware
and software safeguards are incorporated
into the design so you can be assured that
the unit will continue to operate for many years
in the most demanding field environment.

All RUG9s are optically isolated and come standard with 256K of battery backed RAM and 512K of program flash.

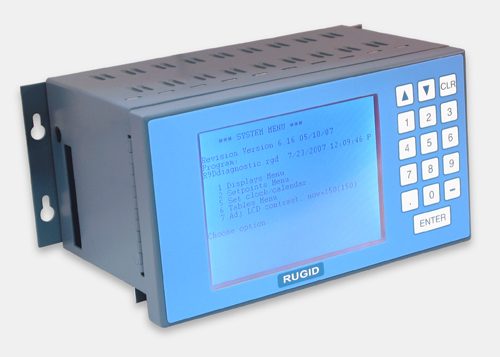

Operator Interface
  • The built-in operator interface (optional) uses familiar prompts and engineering units, eliminating operator guesswork and code memorization.
  • The LCD can show trends, bargraphs, time-tagged event logs, realtime data, setpoints, etc.
  • The 20 line by 40 character (6" diagonal) local backlit display can scroll through several screens of information with a single key press.
  • For greater ease of use, the LCD display can be mounted locally on the card cage or remotely up to 5 feet away.
  • The cage mounted LCD swings out to allow easy access to cards and wiring.
  • Sealed tactile keyboard enables setpoint and mode changing.
RUG9 PLC Display Trend RUG9 PLC Display Swing
  • I/O is optically isolated in groups.
  • Each card cage can house up to 8 I/O boards.
  • Slide-in cards makes customizing your I/O points as easy as removing a single screw.
  • Module design enables easy customization with choices of modem, serial ports, printer port, dialer, loop supply, optically isolated I/O, compact flash, etc...
  • Click here to see a full listing and description of boards available for the RUG9.
RUG9 PLC Inside
  • Up to 7 card cages can be connected to main cage to expand to as many as 512 I/O points.
  • Please visit the Expansion page for expansion boards that are available for the RUG9.
RUG9 PLC Expansion
I/O Connections
  • Individual screw terminals using rising cage clamp design are capable of accepting 14 AWG wire.
  • Screw terminals plug into PC board headers. RUG9 can be "unwired" without removing field wires individually.
Screw Terminals
  • Option of enclosure with or without local display.
  • Each enclosure can house up to 8 RUG9 boards.
  • All enclosures are made of 16-gauge powder-coated steel.
  • Easily mounts on backpan.
  • The RUG9 is programmed via our support software which is available FREE from our downloads page.
  • The RUG9 support software has over 190 pre-programmed modules.
  • RUG9s can also be programmed using BASIC and ladder logic.
  • Operating system is field upgradable.
